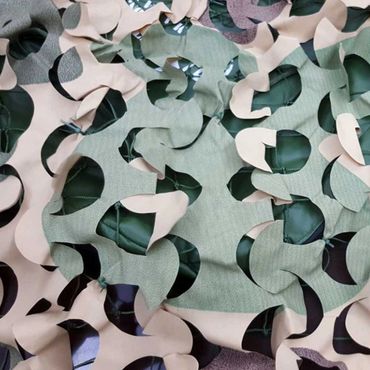

ANTI IR CAMOUFLAGE NETS

---

 Size & Shape: Customized

Pattern: Incised; Reversible: Dual Terrain Application

Colour Combination: Matching the terrain:Sand, Dark Brown, Light Olive Green, Dark Olive Green or as specified.

Finish: Matte finish to avoid reflections, As per IS: 13360 2001 (Part 9:Sec 7) Reaffirmed 2007 At 60 degree incident light < 5 GU.

Combustibility: Self-Extinguishing within 10 Sec, as per BS: 3119 & 5438

Weight: 350 gsm + 5%; as per IS:7016 Pt - I

Heat and Cold Resistance:  - 30 to + 70 degree Celsius

Protection Bands

Visual Range: Wavelength covered 400nm - 750nm

Near Infra-Red Range (NIR): Wavelength covered 750nm - 1200nm (NIR reflectance: Customized)

Thermal Infra-Red Range (TIR): 3000nm - 5000nm & 8000nm - 12000nm

Thermal Transmission & Loading Test: MSCN reduces heat radiation of the object concealed up to 70%, thereby screening hot targets from thermal sensors. The temperature difference between MSCN with ambiance due to solar loading/ ambiance cooling shall be within ± 8 degree Celsius of the ambiance air temperature

Functional Properties: Resistant to damage from micro-organisms | Resistant to damage from oils lubricants, greases & hydrocarbons | Resistant to water and moisture | UV Stabilised | Non-Toxic | Weather proof | Flame Resistant | Anti Fungal

Construction: Single layer supported by cord net

Garnishing Fabric: BS: >1000 N; as per IS: 7016 Pt - II, TS: >100 N; as per IS: 7016 Pt - III (Method - A, tongue tear method)

Supporting Cordage: Mesh Cord BS: > 450 N; as per IS: 7071 Pt - 4, Edge Cord/Tie Cord BS: >1200 N; as per IS: 7071 Pt - 4

Life Span: Storage: 7 years (Standard warehouse Storage Conditions), Operation:  < 3 years

Wind tolerance: Withstands high altitude and high speed winds up-to 40 kmph
